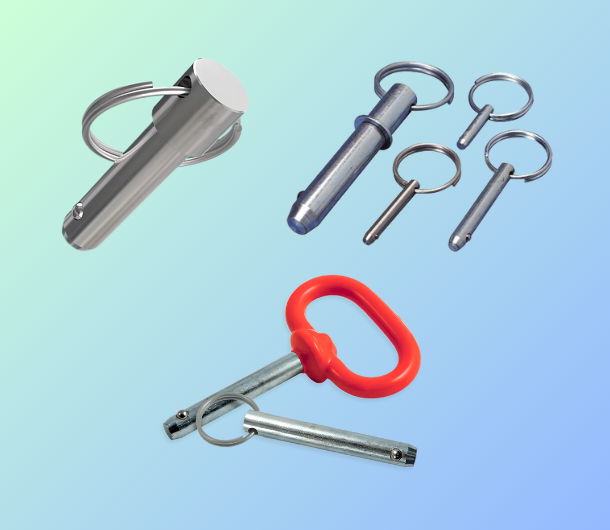

Detent Pins
www.ssfabrics.com

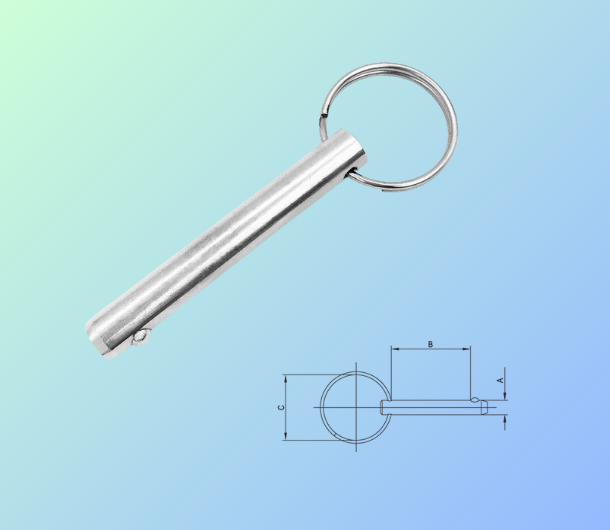

DETENT PIN (BRACKET SIZE IN INCHES)
| CODE | A | B | C |
| SSA71202 | 4.76 (3/16") | 25.40 (1") | 22.35 (0.88") |
| SSA71204 | 4.76 (3/16") | 38.10 (1-1/2") | 22.35 (0.88") |
| SSA71206 | 4.76 (3/16") | 50.80 (2") | 22.35 (0.88") |
| SSA71212 | 6.35 (1/4") | 25.40 (1") | 25.40 (1") |
| SSA71214 | 6.35 (1/4") | 38.10 (1-1/2") | 25.40 (1") |
| SSA71216 | 6.35 (1/4") | 50.80 (2") | 25.40 (1") |
| SSA71218 | 6.35 (1/4") | 63.50 (2-1/2") | 25.40 (1") |
| SSA71220 | 6.35 (1/4") | 76.20 (3") | 25.40 (1") |
| SSA71227 | 7.94 (5/16") | 25.40 (1") | 25.40 (1") |
| SSA71229 | 7.94 (5/16") | 38.10 (1-1/2") | 25.40 (1") |
| SSA71231 | 7.94 (5/16") | 50.80 (2") | 25.40 (1") |
| SSA71233 | 7.94 (5/16") | 63.50 (2-1/2") | 25.40 (1") |
| SSA71234 | 7.94 (5/16") | 76.20 (3") | 25.40 (1") |
| SSA71248 | 9.52 (3/8") | 38.10 (1-1/2") | 25.40 (1") |
| SSA71250 | 9.52 (3/8") | 50.80 (2") | 25.40 (1") |
| SSA71253 | 9.52 (3/8") | 76.20 (3") | 25.40 (1") |
| SSA71265 | 11.11 (7/16") | 50.80 (2") | 25.40 (1") |
| SSA71269 | 11.11 (7/16") | 76.20 (3") | 25.40 (1") |
| SSA71284 | 12.70 (1/2") | 76.20 (3") | 31.75 (1.25") |
| ALSO AVAILABLE IN STAINLESS STEEL | |||
