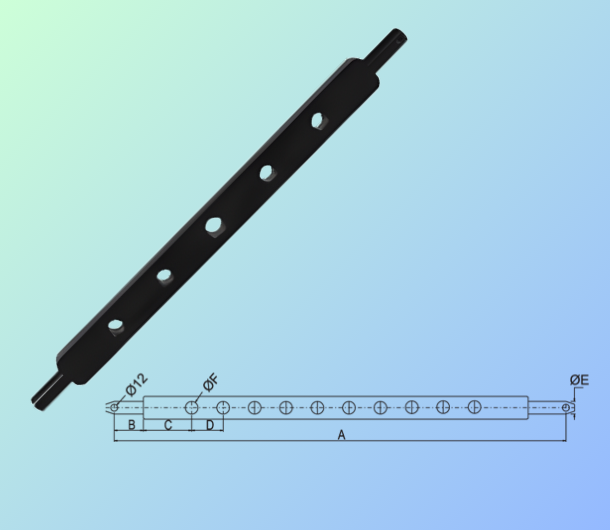

Draw Bars

CODE	A	B	C	D	E	F	NO. OF HOLES
DB-SSA632501	774	57	75	51	22	19	11
DB-SSA632502	775	57.5	75	51	22	22.4	11
DB-SSA632503	774	57	76.2	63.5	22.2	19.5	9
DB-SSA632504	613	51	84.5	57	22	22.2	7
DB-SSA632505	610	51	83	57	22	22	7
DB-SSA632506	770	50	105	76.6	22	22	7
DB-SSA632507	420	57	66	58	22	22	4
DB-SSA632508	421	58	61	61	22	22	4
DB-SSA632509	774	57	75	51	22	19	11
DB-SSA632510	775	57	114	54	22	22	9
DB-SSA632511	610	51	74	60	16	16	7
DB-SSA13K	580	50	80	80	22	22	5
(Kubota / Small Japanese Tractors)
DB-SSA632513	580	50	120	120	22	22	3

CODE	A	B	C	D	E	F	NO. OF HOLES
DB-SSA633001	620	50	72	47	28	28	9
DB-SSA633002	505	52.5	68	66	22	19.5	5
DB-SSA633003	800	58	86	64	22	22	9
DB-SSA633004	774	57	75	51	22	19	11
DB-SSA633005	720	58	70	58	22	22	9
DB-SSA633006	614	51	85	57	22	19	7
DB-SSA633007	960	55	100	65	28	22	11
DB-SSA633008	764	52	60	54	22	22	11
DB-SSA633009	765	53	60	54	22	20	11
DB-SSA633010	780	60	60	54	28	20	11
DB-SSA633011	758	49	114	54	22	20	9
DB-SSA633012	780	60	114	54	28	20	9
DB-SSA633013	762	51	114	54	22	20	9
DB-SSA633014	770	55	110	55	22	20	9
DB-SSA633015	770	55	110	55	28	20	9
DB-SSA633016	648	49	113	54	22	20	7
DB-SSA633017	440	55	110	55	22	20	3
DB-SSA633018	726	58	80	75	22	22	7
DB-SSA633019	800	70	70	65	28	22	9
DB-SSA633020	540	70	70	65	28	22	5
DB-SSA633021	570	85	70	65	22	22	5
DB-SSA633022	650	65	60	50	22	26	9
DB-SSA633023	800	58	82	65	22	22	9
