Linkage Pins
www.ssfabrics.com

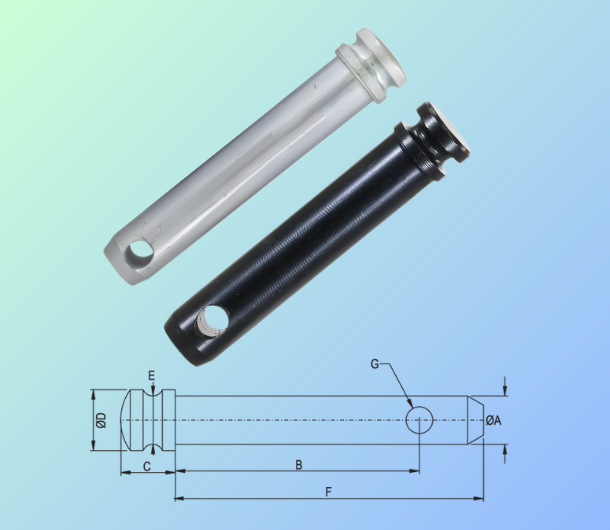

TOP LINK PIN
| CODE | A | B | C | D | E | F | G |
| SSA-TLP12040 | 12 | 40 | 15 | 15 | 11 | 55 | 6.3 |
| SSA-TLP12080 | 12 | 80 | 15 | 15 | 11 | 95 | 6.3 |
| SSA-TLP14040 | 14 | 40 | 15 | 17 | 12 | 55 | 8.3 |
| SSA-TLP14082 | 14 | 82 | 15 | 17 | 12 | 97 | 8.3 |
| SSA-TLP16040 | 16 | 40 | 15 | 20 | 13 | 55 | 8.3 |
| SSA-TLP16045 | 16 | 45 | 15 | 20 | 13 | 60 | 8.3 |
| SSA-TLP16070 | 16 | 70 | 15 | 20 | 13 | 85 | 8.3 |
| SSA-TLP16076 | 16 | 76 | 15 | 20 | 13 | 91 | 8.3 |
| SSA-TLP16082 | 16 | 82 | 15 | 20 | 13 | 97 | 8.3 |
| SSA-TLP16086 | 16 | 86 | 15 | 20 | 13 | 101 | 8.3 |
| SSA-TLP16096 | 16 | 96 | 15 | 20 | 13 | 111 | 8.3 |
| SSA-TLP16100 | 16 | 100 | 15 | 20 | 13 | 115 | 8.3 |
| SSA-TLP16120 | 16 | 120 | 15 | 20 | 13 | 135 | 8.3 |
| SSA-TLP16125 | 16 | 125 | 15 | 20 | 13 | 140 | 8.3 |
| SSA-TLP16146 | 16 | 146 | 15 | 20 | 13 | 161 | 8.3 |
| SSA-TLP19046 | 19 | 46 | 17 | 25 | 18 | 61 | 12 |
| SSA-TLP19052 | 19 | 52 | 17 | 25 | 18 | 67 | 12 |
| SSA-TLP19065 | 19 | 65 | 17 | 25 | 18 | 80 | 12 |
| SSA-TLP19070 | 19 | 70 | 17 | 25 | 18 | 85 | 12 |
| SSA-TLP19076 | 19 | 76 | 17 | 25 | 18 | 91 | 12 |
| SSA-TLP19086 | 19 | 86 | 17 | 25 | 18 | 101 | 12 |
| SSA-TLP19092 | 19 | 92 | 17 | 25 | 18 | 107 | 12 |
| SSA-TLP19096 | 19 | 96 | 17 | 25 | 18 | 111 | 12 |
| SSA-TLP19103 | 19 | 103 | 17 | 25 | 18 | 118 | 12 |
| SSA-TLP19106 | 19 | 106 | 17 | 25 | 18 | 121 | 12 |
| SSA-TLP19110 | 19 | 110 | 17 | 25 | 18 | 125 | 12 |
| SSA-TLP19120 | 19 | 120 | 17 | 25 | 18 | 135 | 12 |
| SSA-TLP19125 | 19 | 125 | 17 | 25 | 18 | 140 | 12 |
| SSA-TLP19145 | 19 | 145 | 17 | 25 | 18 | 160 | 12 |
| SSA-TLP19165 | 19 | 165 | 17 | 25 | 18 | 180 | 12 |
| SSA-TLP22055 | 22 | 55 | 17 | 28 | 21 | 70 | 12 |
| SSA-TLP22076 | 22 | 76 | 17 | 28 | 21 | 91 | 12 |
| SSA-TLP22085 | 22 | 85 | 17 | 28 | 21 | 100 | 12 |
| SSA-TLP22095 | 22 | 95 | 17 | 28 | 21 | 110 | 12 |
| SSA-TLP22100 | 22 | 100 | 17 | 28 | 21 | 115 | 12 |
| SSA-TLP22106 | 22 | 106 | 17 | 28 | 21 | 121 | 12 |
| SSA-TLP22110 | 22 | 110 | 17 | 28 | 21 | 125 | 12 |
| SSA-TLP22125 | 22 | 125 | 17 | 28 | 21 | 140 | 12 |
| SSA-TLP22145 | 22 | 145 | 17 | 28 | 21 | 160 | 12 |
| SSA-TLP22155 | 22 | 155 | 17 | 28 | 21 | 170 | 12 |
TOP LINK PIN
| CODE | A | B | C | D | E | F | G |
| SSA-TLP22165 | 22 | 165 | 17 | 28 | 21 | 180 | 12 |
| SSA-TLP22185 | 22 | 185 | 17 | 28 | 21 | 200 | 12 |
| SSA-TLP22205 | 22 | 205 | 17 | 28 | 21 | 220 | 12 |
| SSA-TLP25076 | 25 | 76 | 20 | 31 | 24 | 91 | 12 |
| SSA-TLP25085 | 25 | 85 | 20 | 31 | 24 | 100 | 12 |
| SSA-TLP25095 | 25 | 95 | 20 | 31 | 24 | 110 | 12 |
| SSA-TLP25105 | 25 | 105 | 20 | 31 | 24 | 120 | 12 |
| SSA-TLP25110 | 25 | 110 | 20 | 31 | 24 | 125 | 12 |
| SSA-TLP25116 | 25 | 116 | 20 | 31 | 24 | 131 | 12 |
| SSA-TLP25126 | 25 | 126 | 20 | 31 | 24 | 141 | 12 |
| SSA-TLP25136 | 25 | 136 | 20 | 31 | 24 | 151 | 12 |
| SSA-TLP25145 | 25 | 145 | 20 | 31 | 24 | 160 | 12 |
| SSA-TLP25160 | 25 | 160 | 20 | 31 | 24 | 175 | 12 |
| SSA-TLP25180 | 25 | 180 | 20 | 31 | 24 | 195 | 12 |
| SSA-TLP25185 | 25 | 185 | 20 | 31 | 24 | 200 | 12 |
| SSA-TLP25205 | 25 | 205 | 20 | 31 | 24 | 220 | 12 |
| SSA-TLP28085 | 28 | 85 | 20 | 34 | 27 | 100 | 12 |
| SSA-TLP28095 | 28 | 95 | 20 | 34 | 27 | 110 | 12 |
| SSA-TLP28103 | 28 | 103 | 20 | 34 | 27 | 118 | 12 |
| SSA-TLP28116 | 28 | 116 | 20 | 34 | 27 | 131 | 12 |
| SSA-TLP28125 | 28 | 125 | 20 | 34 | 27 | 140 | 12 |
| SSA-TLP28130 | 28 | 130 | 20 | 34 | 27 | 145 | 12 |
| SSA-TLP28145 | 28 | 145 | 20 | 34 | 27 | 160 | 12 |
| SSA-TLP28152 | 28 | 152 | 20 | 34 | 27 | 167 | 12 |
| SSA-TLP28160 | 28 | 160 | 20 | 34 | 27 | 175 | 12 |
| SSA-TLP28180 | 28 | 180 | 20 | 34 | 27 | 195 | 12 |
| SSA-TLP28205 | 28 | 205 | 20 | 34 | 27 | 220 | 12 |
| SSA-TLP30150 | 30 | 150 | 20 | 36 | 32 | 168 | 12 |
| SSA-TLP32096 | 32 | 96 | 19 | 38 | 31 | 121 | 12 |
| SSA-TLP32105 | 32 | 105 | 20 | 38 | 32 | 152 | 12 |
| SSA-TLP32116 | 32 | 116 | 19 | 38 | 31 | 134 | 12 |
| SSA-TLP32120 | 32 | 120 | 20 | 38 | 30 | 139 | 12 |
| SSA-TLP32125 | 32 | 125 | 20 | 38 | 32 | 163 | 12 |
| SSA-TLP32136 | 32 | 136 | 20 | 38 | 32 | 175 | 12 |
| SSA-TLP32150 | 32 | 150 | 21 | 38 | 32 | 168 | 12 |
| SSA-TLP32176 | 32 | 176 | 19 | 38 | 31 | 194 | 12 |
| SSA-TLP36105 | 36 | 105 | 22 | 42 | 35 | 125 | 12 |
| SSA-TLP36157 | 36 | 157 | 22 | 42 | 35 | 177 | 12 |
| SSA-TLP37125 | 37 | 125 | 25 | 46 | 39 | 140 | 12 |
| SSA-TLP37145 | 37 | 145 | 25 | 46 | 39 | 165 | 12 |
| SSA-TLP37165 | 37 | 165 | 25 | 46 | 39 | 185 | 12 |
| SSA-TLP37175 | 37 | 175 | 25 | 46 | 39 | 190 | 12 |
| SSA-TLP45175 | 45 | 175 | 30 | 54 | 47 | 195 | 14 |
