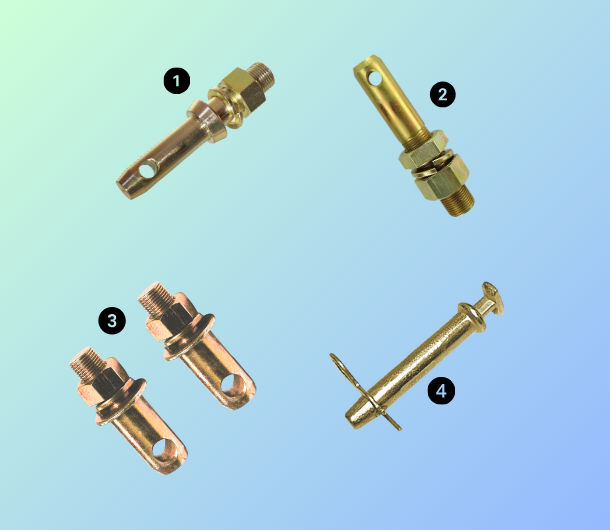

Linkage Pins
www.ssfabrics.com

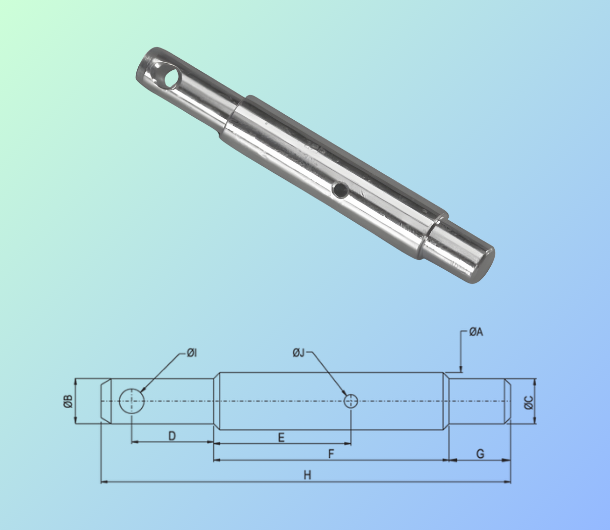

DOUBLE IMPLEMENT MOUNTING PIN (TYPE- A)
| CODE | A | B | C | D | E | F | G | H | I | J |
| DIP2219 | 28 | 22 | 22 | 40 | 67 | 115 | 30 | 200 | 12 | 6.5 |
| DIP2520 | 28 | 25 | 22 | 40 | 67 | 115 | 30 | 200 | 12 | 6.5 |
DOUBLE IMPLEMENT MOUNTING PIN (TYPE- B)
| CODE | A | B | C | D | E | F | G |
| DIP2510 | 25 | 19 | 62 | 96 | 22 | 212 | 12 |
| DIP2511 | 25 | 19 | 70 | 66 | 18 | 170 | 6.5 |
| DIP2509 | 25 | 19 | 80 | 70 | 20 | 210 | 12 |
| DIP2812 | 28 | 22 | 75 | 75 | 20 | 200 | 12 |
| DIP2813 | 28 | 22 | 80 | 70 | 20 | 210 | 12 |
| DIP2814 | 28 | 22 | 80 | 90 | 20 | 230 | 12 |
| DIP3216 | 32 | 25 | 81 | 115 | 26 | 250 | 12 |
| DIP3617 | 36.5 | 28 | 81 | 150 | 26 | 277 | 12 |
| DIP3618 | 36.5 | 28 | 80 | 150 | 28 | 290 | 12 |
