Weld On Ends
www.ssfabrics.com

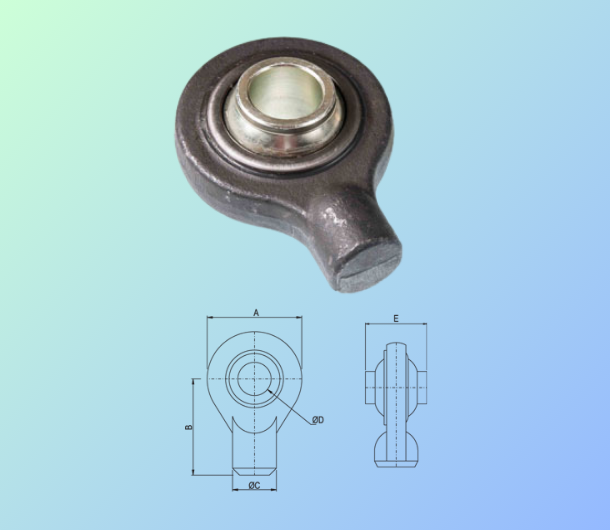

WELD ON END
| CODE | D | E | A | B | C | F |
|---|---|---|---|---|---|---|
| WOE-SSS 1334 | 19 | 44 | 54 | 55 | 25.4 | |
| WOE-SSS 0694 | 19 | 30 | 55 | 50 | 25 | |
| WOE-SSS 0695 | 19 | 44 | 55 | 50 | 25 | |
| WOE-SSS 0696 | 20 | 44 | 55 | 50 | 25 | |
| WOE-SSS 1336 | 25.4 | 51 | 76 | 73 | 30 | |
| WOE-SSS 0791 | 25.4 | 51 | 90 | 85 | 40 | |
| WOE-SSS 0792 | 30 | 51 | 90 | 85 | 40 | |
| WOE-SSS 0793 | 32 | 51 | 90 | 85 | 40 | |
| WOE-SSS 0794 | 32 | 51 | 90 | 85 | 40 | M27X2 |
| WOE-SSS 0741 | 25.4 | 51 | 75 | 70 | 31 |

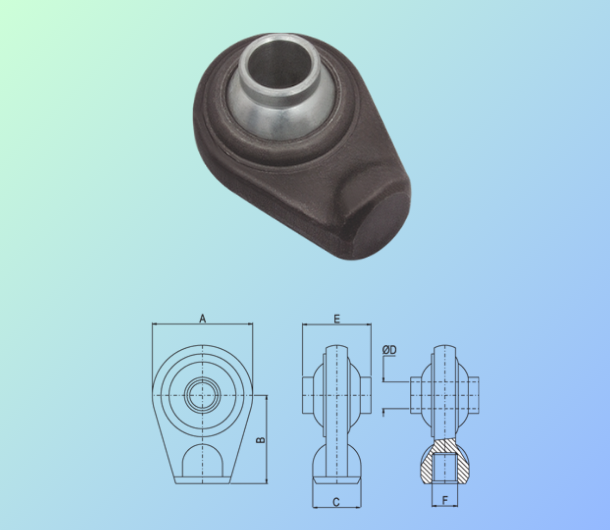

WELD ON END
| CODE | D | E | A | B | C |
|---|---|---|---|---|---|
| WOE-SSS 0724 | 19 | 35 | 62 | 50 | 26 |
| WOE-SSS 0725 | 22.1 | 35 | 62 | 50 | 26 |
| WOE-SSS 0708 | 19 | 44 | 62 | 58 | 34 |
| WOE-SSS 0709 | 20 | 44 | 62 | 58 | 34 |
| WOE-SSS 0710 | 19 | 44 | 62 | 60 | 34 |
| WOE-SSS 0720 | 20 | 44 | 62 | 60 | 34 |
| WOE-SSS 0712 | 22.1 | 44 | 62 | 60 | 34 |
| WOE-SSS 0744 | 19 | 51 | 72 | 70 | 45 |
| WOE-SSS 0746 | 22.1 | 51 | 72 | 70 | 45 |
| WOE-SSS 0742 | 25.4 | 51 | 72 | 70 | 45 |
| WOE-SSS 0748 | 30 | 51 | 72 | 70 | 45 |
| WOE-SSS 0737 | 19 | 51 | 75 | 70 | 38 |
| WOE-SSS 0730 | 22.1 | 51 | 75 | 65 | 38 |
| WOE-SSS 0735 | 25.4 | 40 | 75 | 65 | 38 |
| WOE-SSS 0740 | 25.4 | 51 | 75 | 65 | 38 |
| WOE-SSS 0739 | 30 | 51 | 75 | 65 | 38 |
| WOE-SSS 0750 | 25.4 | 51 | 83 | 65 | 50 |
| WOE-SSS 0805 | 30 | 42 | 83 | 65 | 50 |
| WOE-SSS 0810 | 30 | 55 | 83 | 65 | 50 |
