Weld On Ends
www.ssfabrics.com

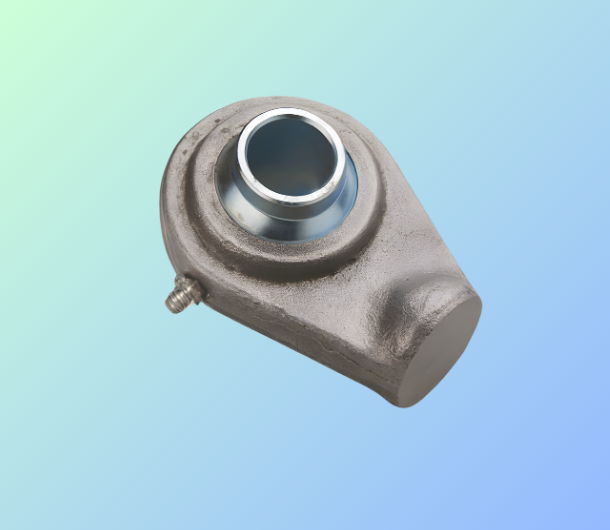

WELD ON END
| CODE | D | E | A | B | C | F |
|---|---|---|---|---|---|---|
| WOE-SSS 0807 | 32 | 51 | 83 | 65 | 50 | |
| WOE-SSS 0812 | 35 | 35 | 83 | 65 | 50 | |
| WOE-SSS 0815 | 35 | 55 | 83 | 65 | 50 | |
| WOE-SSS 0759 | 19 | 51 | 85 | 70 | 50 | |
| WOE-SSS 0756 | 22.1 | 51 | 85 | 70 | 50 | |
| WOE-SSS 0768 | 22.1 | 51 | 85 | 70 | 50 | M27X2 |
| WOE-SSS 0760 | 25.4 | 51 | 85 | 70 | 50 | |
| WOE-SSS 0770 | 25.4 | 51 | 85 | 70 | 50 | M27X2 |
| WOE-SSS 0780 | 30 | 51 | 85 | 70 | 50 | |
| WOE-SSS 0790 | 30 | 51 | 85 | 70 | 50 | M27X2 |
| WOE-SSS 0818 | 30 | 42 | 92 | 65 | 50 | |
| WOE-SSS 0817 | 30 | 59 | 92 | 65 | 50 | |
| WOE-SSS 0825 | 32 | 51 | 92 | 65 | 50 | |
| WOE-SSS 0819 | 35 | 35 | 92 | 65 | 50 | |
| WOE-SSS 0821 | 40 | 75 | 108 | 60 | 58 | |
| WOE-SSS 0841 | 45 | 75 | 108 | 60 | 58 | |
| WOE-SSS 0861 | 50 | 75 | 108 | 60 | 58 | |
| WOE-SSS 0820 | 40 | 75 | 108 | 85 | 60 | |
| WOE-SSS 0830 | 40 | 75 | 108 | 85 | 60 | M38X2 |
| WOE-SSS 0840 | 45 | 75 | 108 | 85 | 60 | |
| WOE-SSS 0850 | 45 | 75 | 108 | 85 | 60 | M38X2 |
| WOE-SSS 0860 | 50 | 75 | 108 | 85 | 60 | |
| WOE-SSS 0870 | 50 | 75 | 108 | 85 | 60 | M38X2 |

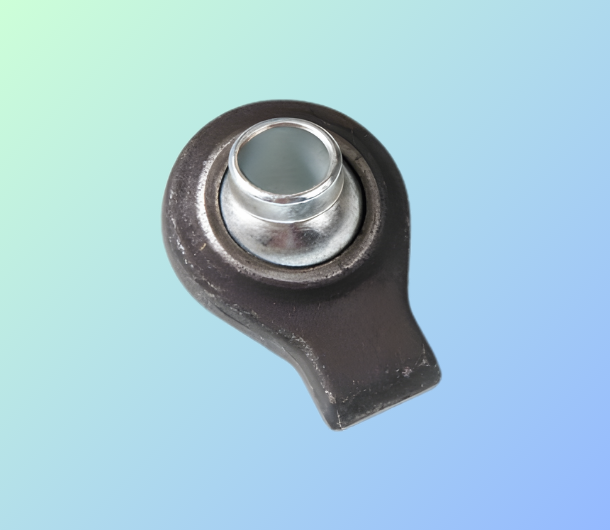

WELD ON END
| CODE | D | E | A | B | C |
| WOE-SSS S310 | 19 | 44 | 57 | 50.8 | 28.5 |
| WOE-SSS 0700 | 19 | 44 | 62 | 34 | 30 |
| WOE-SSS 0702 | 20 | 44 | 62 | 34 | 30 |
| WOE-SSS 0704 | 22.1 | 44 | 62 | 34 | 30 |
| WOE-SSS S311 | 25.4 | 51 | 62 | 60 | 30 |
