Levelling Box Assembly
www.ssfabrics.com

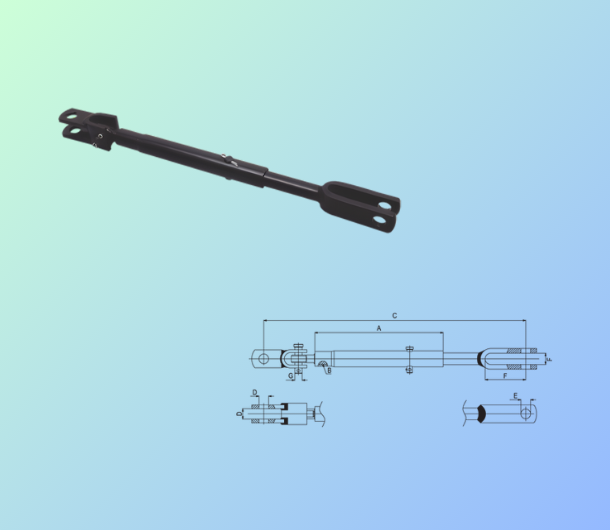

LEVELLING ASSEMBLY (COMPATIBLE WITH URSUS & MF)
| CODE | PIPE (A) MM |
THREAD (B) |
USABLE C |
D | E | F | G |
| SSA-LBA 42371110 (RH) | 287 | M24×3 | 565 | 22×20.5 | 20.5 | 23×85 | 16 |

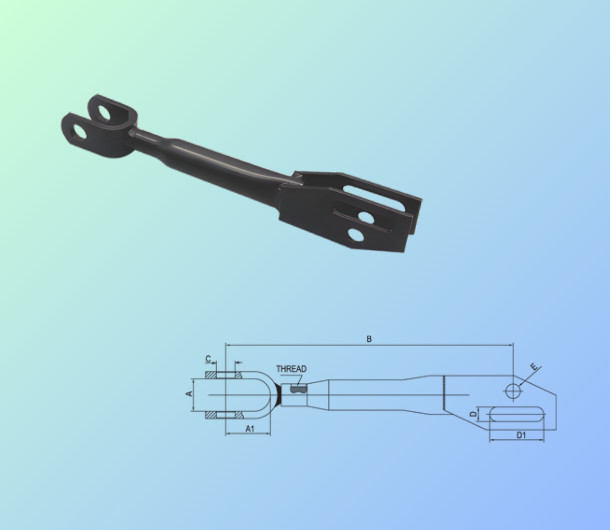

LEVELLING ASSEMBLY (COMPATIBLE WITH URSUS & MF)
| CODE | A X A1 | THREAD | USABLE B |
C | D X D1 | E |
| SSA-LBA 46650200 (LH) | 50 X 62 | M24X2 | 405 | 26 | 20 X 75 | 20 |

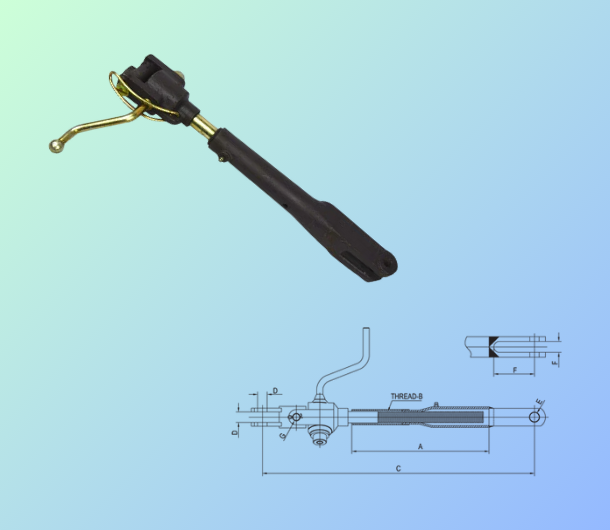

LEVELLING ASSEMBLY (COMPATIBLE WITH URSUS & MF)
| CODE | PIPE (A) |
THREAD (B) |
USABLE C |
D | E | F | G |
| SSA-LBA 4663843M91 (LH) | 300 | 3/4" UNC | 560 | 16.5 | 16.5 | 20 X 85 | 16 |

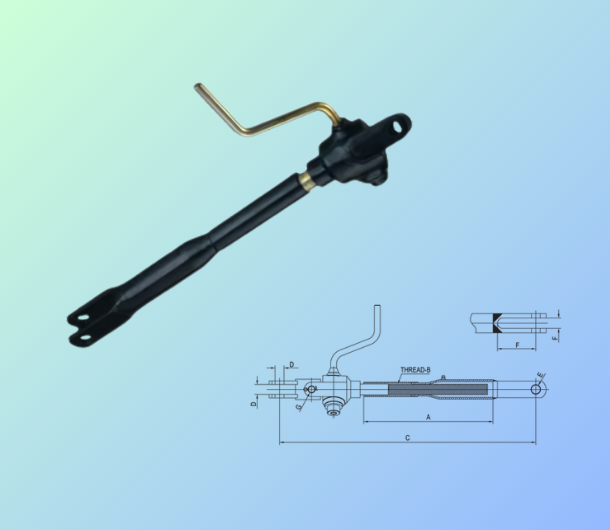

LEVELLING ASSEMBLY (COMPATIBLE WITH URSUS & MF)
| CODE | PIPE (A) MM |
THREAD (B) |
USABLE C |
D | E | F | G |
| SSA-LBA 42371080 (LH) | 272 | M24 X 3.0 | 550 | 20.5 X 22 | 20.5 | 23 X 25 | 16 |
