Top Link Assembly

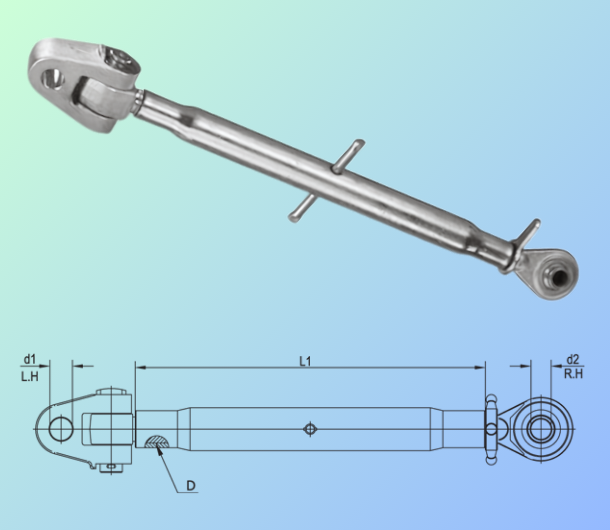

TOP LINK ASSEMBLY WITH ARTICULATED YOKE

CODE
CAT
d1-d2
PIPE
L1 (MM)
THREAD
D
THREAD M 30 X 3.5
SSA-ARTY 230-2-30X3.5 2-2 230 M30X3.5
SSA-ARTY 270-2-30X3.5 2-2 270 M30X3.5
SSA-ARTY 330-2-(Y-20.25) 20.25-2 330 M30X3.5
SSA-ARTY 330-2-(Y-22.25) 22.25-2 330 M30X3.5
SSA-ARTY 370-2-30X3.5 2-2 370 M30X3.5
SSA-ARTY 370-2-(Y-20.25) 20.25-2 370 M30X3.5
SSA-ARTY 370-2-(Y-22.25) 22.25-2 370 M30X3.5
SSA-ARTY 405-2-(Y-20.25) 20.25-2 405 M30X3.5
SSA-ARTY 405-2-(Y-22.25) 22.25-2 405 M30X3.5
SSA-ARTY 450-2-(Y-20.25) 20.25-2 450 M30X3.5
SSA-ARTY 450-2-(Y-22.25) 22.25-2 450 M30X3.5
SSA-ARTY 510-2-(Y-20.25) 20.25-2 510 M30X3.5
SSA-ARTY 510-2-(Y-22.25) 22.25-2 510 M30X3.5
SSA-ARTY 560-2-30X3.5 2-2 560 M30X3.5
THREAD M 36 X 3 ( 80-Head)
SSA-ARTY 400-2-36X3.0 2-2 400 M36 X 3
SSA-ARTY 440-2-36X3.0 2-2 440 M36 X 3
SSA-ARTY 440-2-(Y-28.4) 28.4-2 440 M36 X 3
SSA-ARTY 440-2-(Y-32) 3-2 440 M36 X 3
SSA-ARTY 460-2-36X3.0 2-2 460 M36 X 3
SSA-ARTY 480-2-36X3.0 2-2 480 M36 X 3
SSA-ARTY 520-2-36X3.0 2-2 520 M36 X 3
SSA-ARTY 580-2-36X3.0 2-2 580 M36 X 3
SSA-ARTY 620-2-36X3.0 2-2 620 M36 X 3
THREAD M 36 X 3 ( 96-Head)
SSA-ARTY 400-2H-36X3.0 2-2 400 M36 X 3
SSA-ARTY 400-D-36X3.0 2-3 400 M36 X 3
SSA-ARTY 440-3-(Y-32) 3-3 440 M36 X 3
SSA-ARTY 460-2H-36X3.0 2-2 460 M36 X 3
SSA-ARTY 460-D-36X3.0 2-3 460 M36 X 3
SSA-ARTY 480-D-36X3.0 2-3 480 M36 X 3
SSA-ARTY 520-2H-36X3.0 2-2 520 M36 X 3
SSA-ARTY 520-D-36X3.0 2-3 520 M36 X 3
SSA-ARTY 520-3-36X3.0 3-3 520 M36 X 3
SSA-ARTY 580-2H-36X3.0 2-2 580 M36 X 3
SSA-ARTY 580-D-36X3.0 2-3 580 M36 X 3
SSA-ARTY 580-3-36X3.0 3-3 580 M36 X 3
SSA-ARTY 620-D-36X3.0 2-3 620 M36 X 3
SSA-ARTY 620-3-36X3.0 3-3 620 M36 X 3
