Top Link Assembly & Parts
www.ssfabrics.com

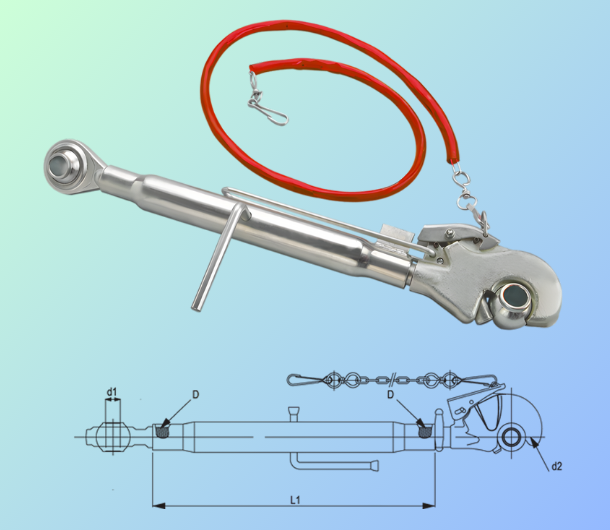

TOP LINK ASSEMBLY WITH RAPID HOOK
CODE |
CAT d1-d2 |
PIPE L1 (MM) |
THREAD D |
THREAD M27X3 |
|||
| SSA-RAPH 2202-27 | 2-2 | 220 | M27X3 |
| SSA-RAPH 3202-27 | 2-2 | 320 | M27X3 |
| SSA-RAPH 3702-27 | 2-2 | 370 | M27X3 |
| SSA-RAPH 4302-27 | 2-2 | 430 | M27X3 |
| SSA-RAPH 4702-27 | 2-2 | 470 | M27X3 |
| SSA-RAPH 5702-27 | 2-2 | 570 | M27X3 |
THREAD M30X3 |
|||
| SSA-RAPH 3502-30 | 2-2 | 350 | M30X3 |
| SSA-RAPH 4002-30 | 2-2 | 400 | M30X3 |
| SSA-RAPH 4502-30 | 2-2 | 450 | M30X3 |
| SSA-RAPH 5002-30 | 2-2 | 500 | M30X3 |
| SSA-RAPH 5502-30 | 2-2 | 550 | M30X3 |
| SSA-RAPH 6002-30 | 2-2 | 600 | M30X3 |
| SSA-RAPH 7302-30 | 2-2 | 730 | M30X3 |
| SSA-RAPH 8002-30 | 2-2 | 800 | M30X3 |
| SSA-RAPH 9002-30 | 2-2 | 900 | M30X3 |
| SSA-RAPH 10002-30 | 2-2 | 1000 | M30X3 |
THREAD M36X3 (80- Head) |
|||
| SSA-RAPH 3602-36 | 2-2 | 360 | M36X3 |
| SSA-RAPH 4002-36 | 2-2 | 400 | M36X3 |
| SSA-RAPH3 4002-36 | 2-3 | 400 | M36X3 |
| SSA-RAPH 4502-36 | 2-2 | 450 | M36X3 |
| SSA-RAPH3 4502-36 | 2-3 | 450 | M36X3 |
| SSA-RAPH 4602-36 | 2-2 | 460 | M36X3 |
| SSA-RAPH3 4602-36 | 2-3 | 460 | M36X3 |
| SSA-RAPH 5002-36 | 2-2 | 500 | M36X3 |
| SSA-RAPH3 5002-36 | 2-3 | 500 | M36X3 |
| SSA-RAPH 5802-36 | 2-2 | 580 | M36X3 |
| SSA-RAPH3 5802-36 | 2-3 | 580 | M36X3 |
| SSA-RAPH 6202-36 | 2-2 | 620 | M36X3 |
| SSA-RAPH3 6202-36 | 2-3 | 620 | M36X3 |
| SSA-RAPH 7002-36 | 2-2 | 700 | M36X3 |
| SSA-RAPH3 7002-36 | 2-3 | 700 | M36X3 |
| SSA-RAPH 7302-36 | 2-2 | 730 | M36X3 |
| SSA-RAPH3 7302-36 | 2-3 | 730 | M36X3 |
THREAD M36X3 (96 - Head) |
|||
| SSA-RAPH 4002H-36 | 2-2 | 400 | M36X3 |
| SSA-RAPH 4003-36 | 3-2 | 400 | M36X3 |
| SSA-RAPH 34002H-36 | 2-3 | 400 | M36X3 |
| SSA-RAPHS3 4003-36 | 3-3 | 400 | M36X3 |
| SSA-RAPH 4502H-36 | 2-2 | 450 | M36X3 |
| SSA-RAPH 4503-36 | 3-2 | 450 | M36X3 |
| SSA-RAPH 34502H-36 | 2-3 | 450 | M36X3 |
| SSA-RAPH3 4503-36 | 3-3 | 450 | M36X3 |
| SSA-RAPH 4602H-36 | 2-2 | 460 | M36X3 |
| SSA-RAPH 34602H-36 | 2-3 | 460 | M36X3 |
| SSA-RAPH 4603-36 | 3-2 | 460 | M36X3 |
| SSA-RAPH3 4603-36 | 3-3 | 460 | M36X3 |
| SSA-RAPH 5202H-36 | 2-2 | 520 | M36X3 |
| SSA-RAPH 5203-36 | 3-2 | 520 | M36X3 |
| SSA-RAPH 35202H-36 | 2-3 | 520 | M36X3 |
| SSA-RAPH3 5203-36 | 3-3 | 520 | M36X3 |
| SSA-RAPH 5802H-36 | 2-2 | 580 | M36X3 |
| SSA-RAPH 5803-36 | 3-2 | 580 | M36X3 |
| SSA-RAPH 35802H-36 | 2-3 | 580 | M36X3 |
| SSA-RAPH3 5803-36 | 3-3 | 580 | M36X3 |
| SSA-RAPH 6202H-36 | 2-2 | 620 | M36X3 |
| SSA-RAPH 6203-36 | 3-2 | 620 | M36X3 |
| SSA-RAPH 36202H-36 | 2-3 | 620 | M36X3 |
| SSA-RAPH3 6203-36 | 3-3 | 620 | M36X3 |
| SSA-RAPH 7002H-36 | 2-2 | 700 | M36X3 |
| SSA-RAPH 7003-36 | 3-2 | 700 | M36X3 |
| SSA-RAPH 37002H-36 | 2-3 | 700 | M36X3 |
| SSA-RAPH3 7003-36 | 3-3 | 700 | M36X3 |
| SSA-RAPH 7302H-36 | 2-2 | 730 | M36X3 |
| SSA-RAPH 7303-36 | 3-2 | 730 | M36X3 |
| SSA-RAPH 37302H-36 | 2-3 | 730 | M36X3 |
| SSA-RAPH3 7303-36 | 3-3 | 730 | M36X3 |
THREAD M40X3 (Heavy Model) 96 - Head |
|||
| SSA-RAPH 35002-40 | 2-3 | 500 | M40X3 |
| SSA-RAPH 35003-40 | 3-3 | 500 | M40X3 |
| SSA-RAPH 36202-40 | 2-3 | 620 | M40X3 |
| SSA-RAPH 36203-40 | 3-3 | 620 | M40X3 |
